Features:

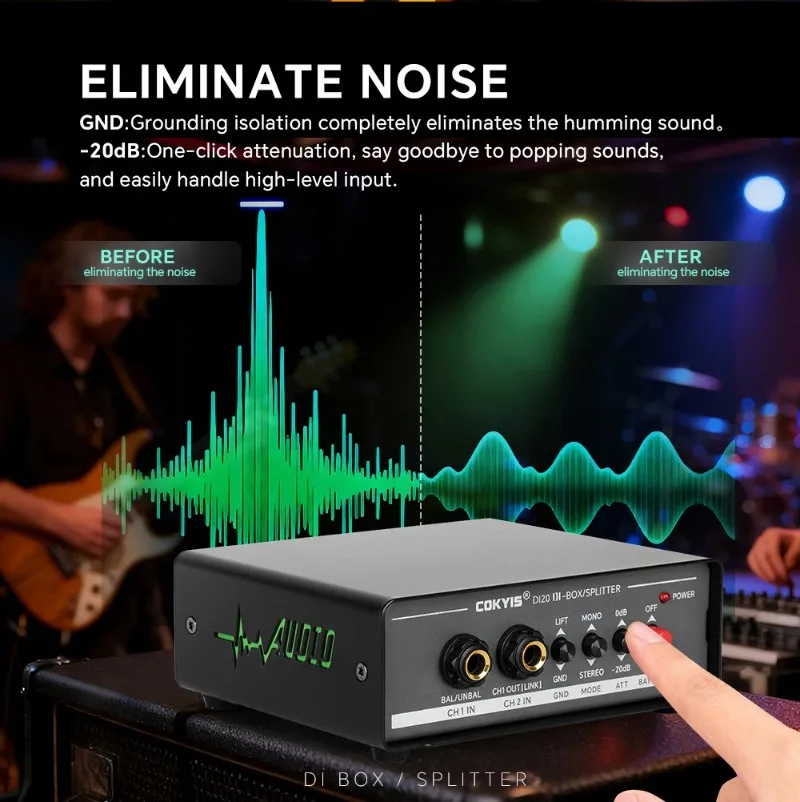

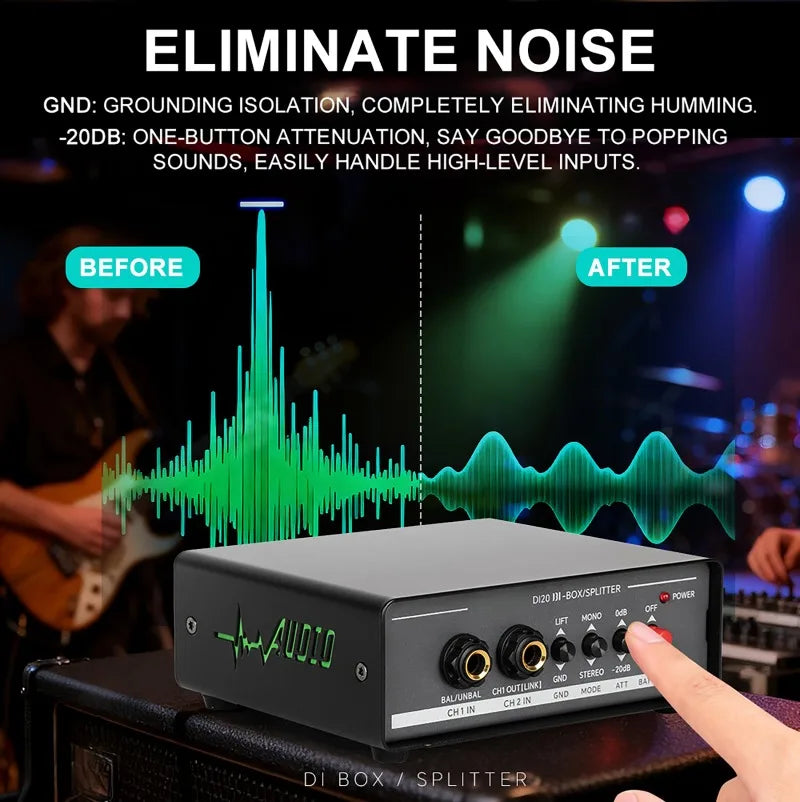

*** Noise Elimination: Grounding isolation completely eliminates hum. One-button attenuation eliminates popping sounds and easily handles high-level inputs.

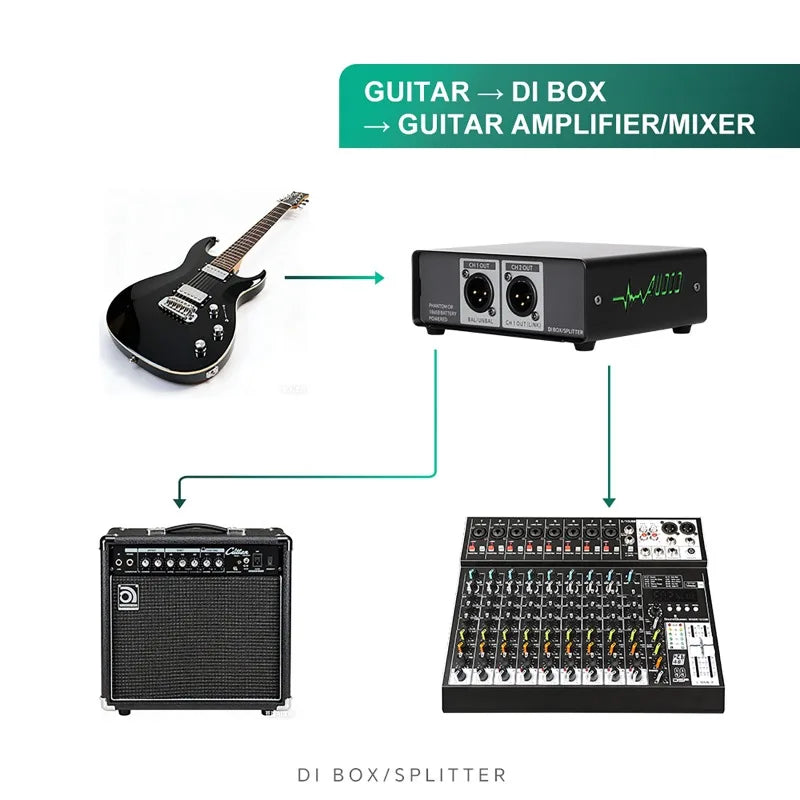

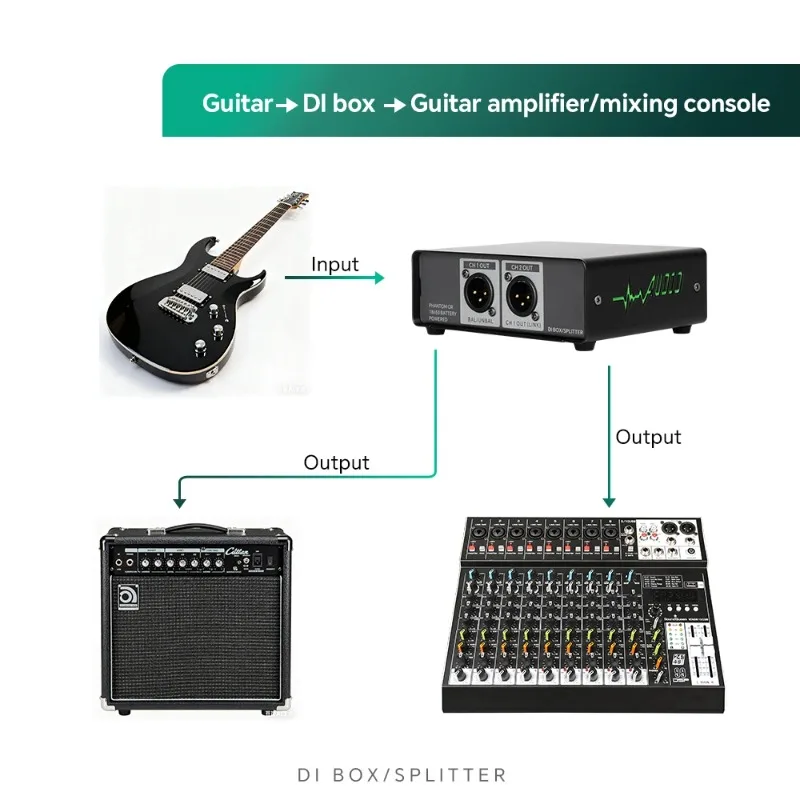

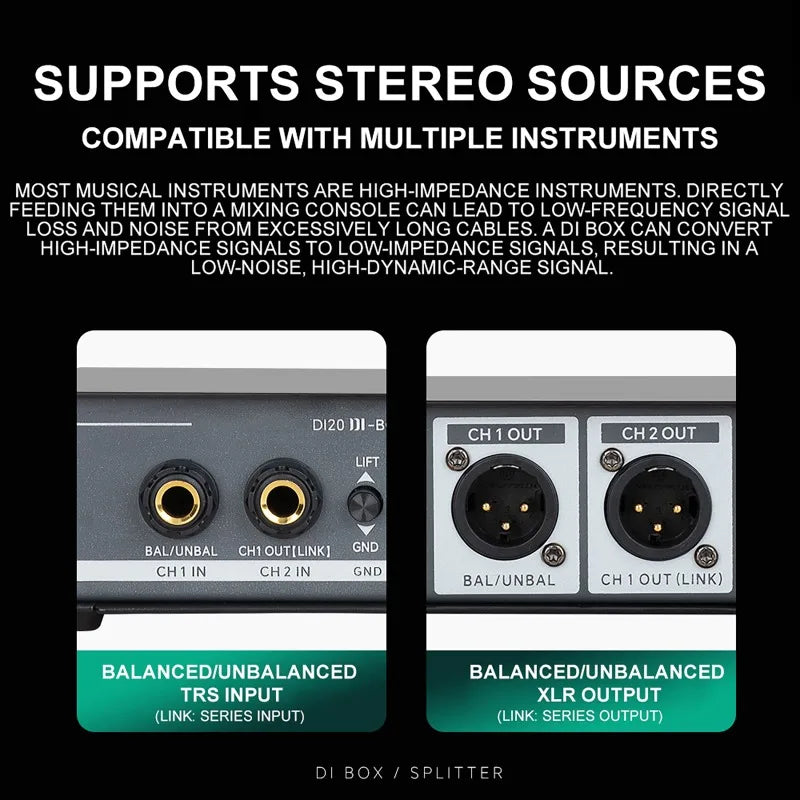

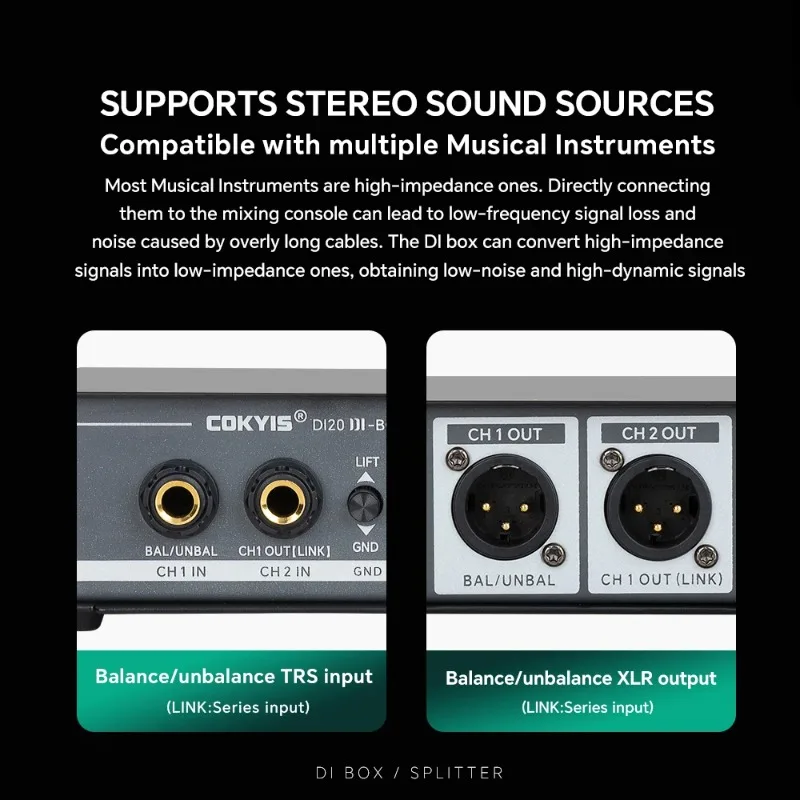

*** Compatible with Multiple Instruments: Most instruments are high-impedance, and directly feeding them into a mixing console can lead to low-frequency signal loss and noise from excessively long cables. The DI box converts high impedance to low impedance, resulting in a low-noise, high-dynamic-range signal.

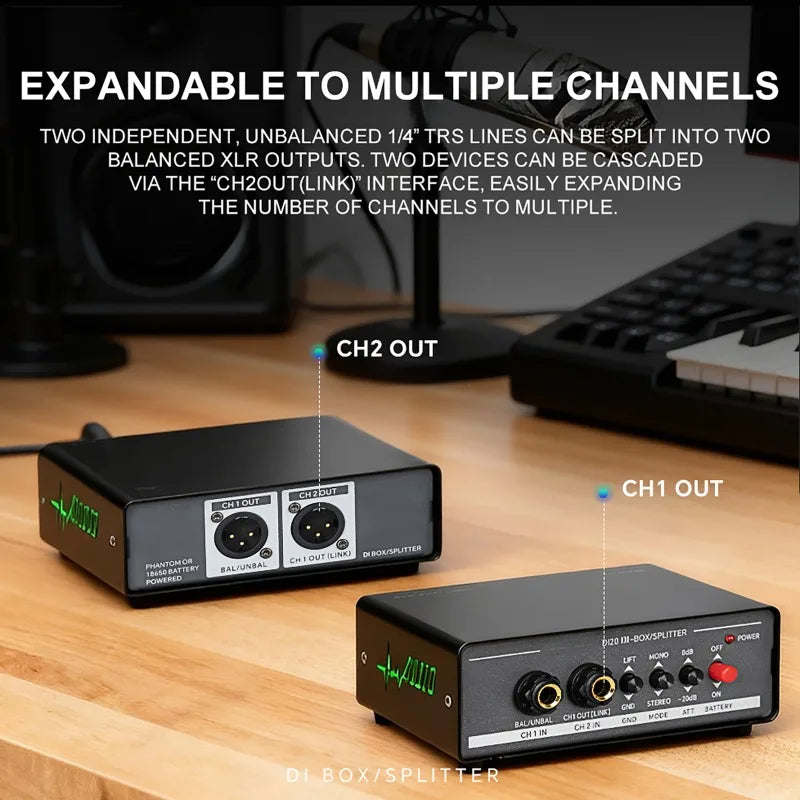

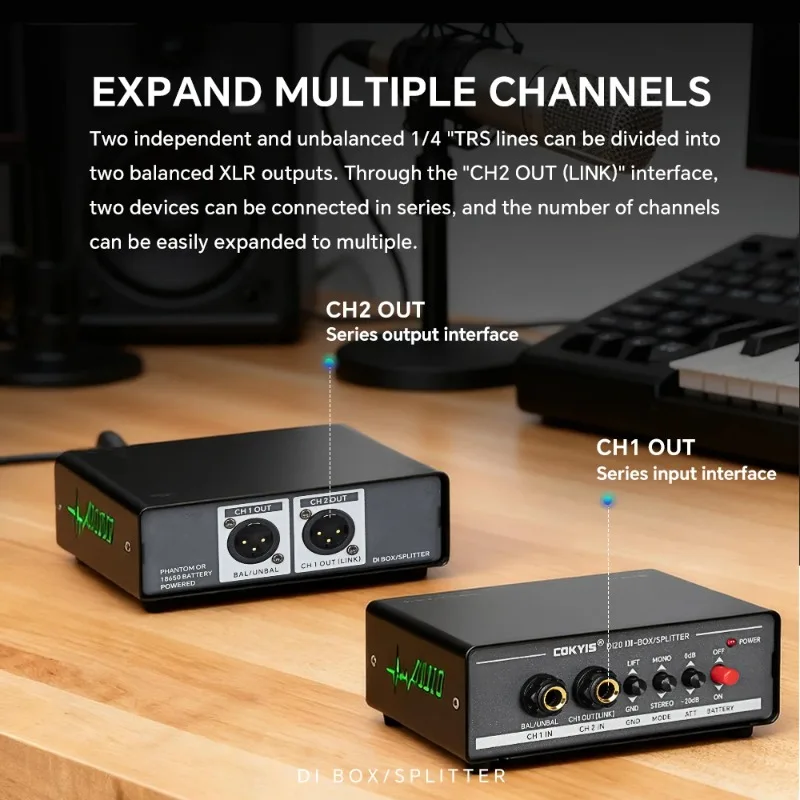

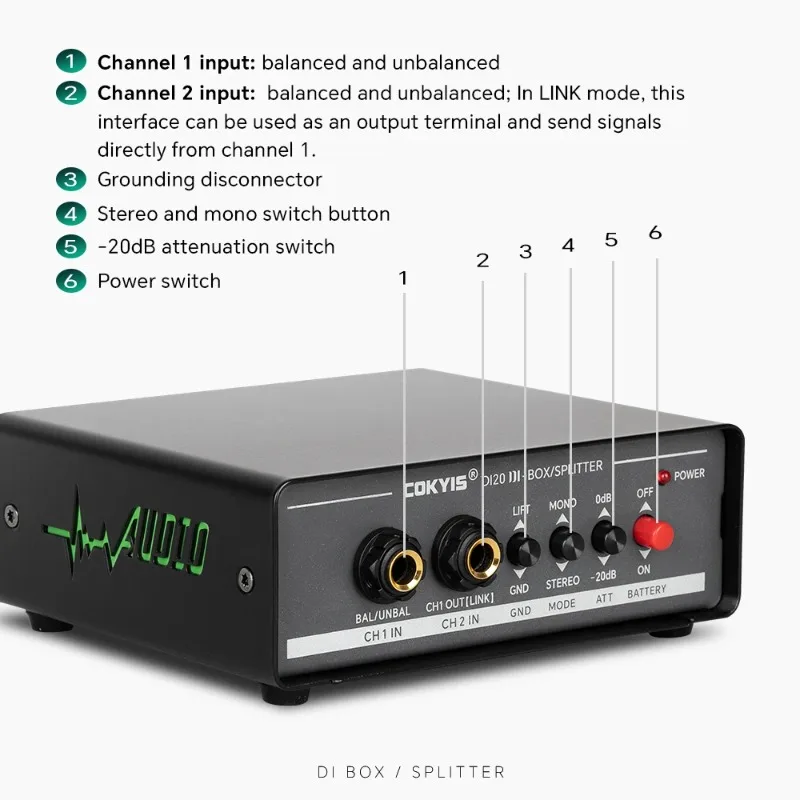

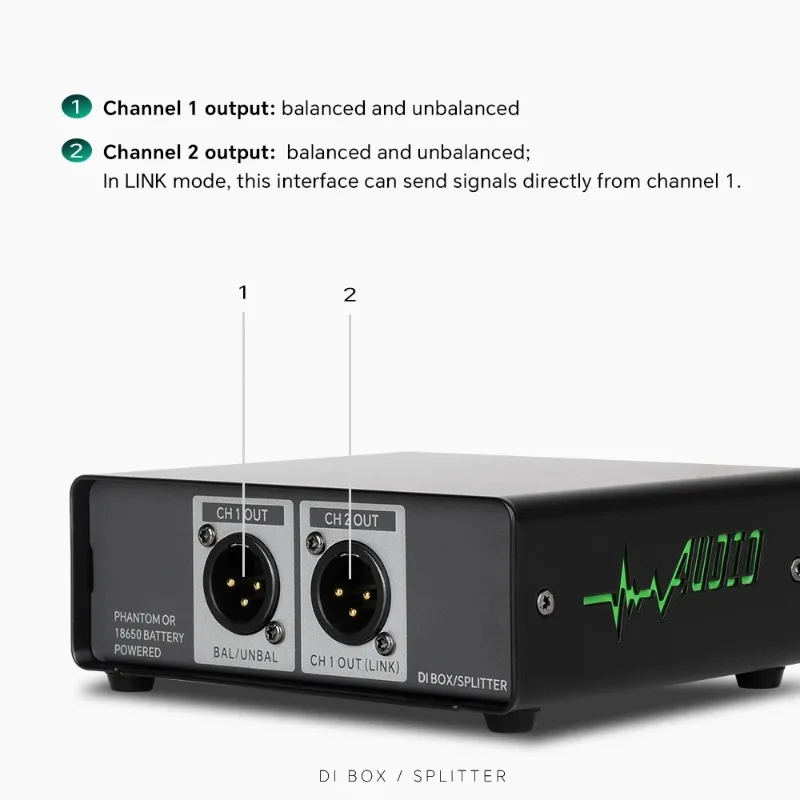

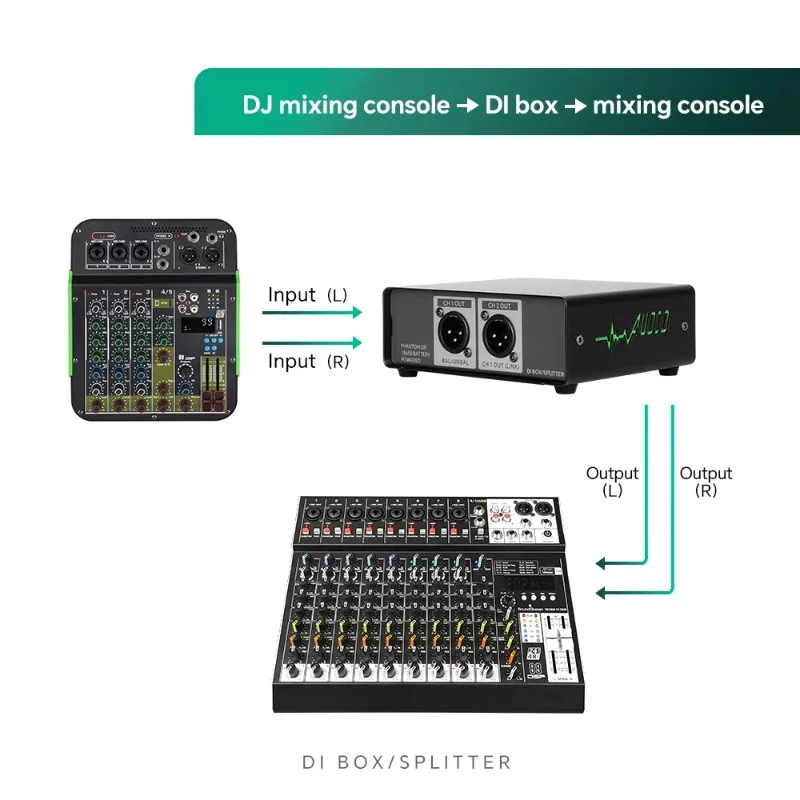

*** Expandable to Multiple Channels: Two independent, unbalanced 1/4” TRS cables can be split into two balanced XLR outputs. The “CH2OUT(LINK)” interface allows two devices to be cascaded, easily expanding the number of channels.

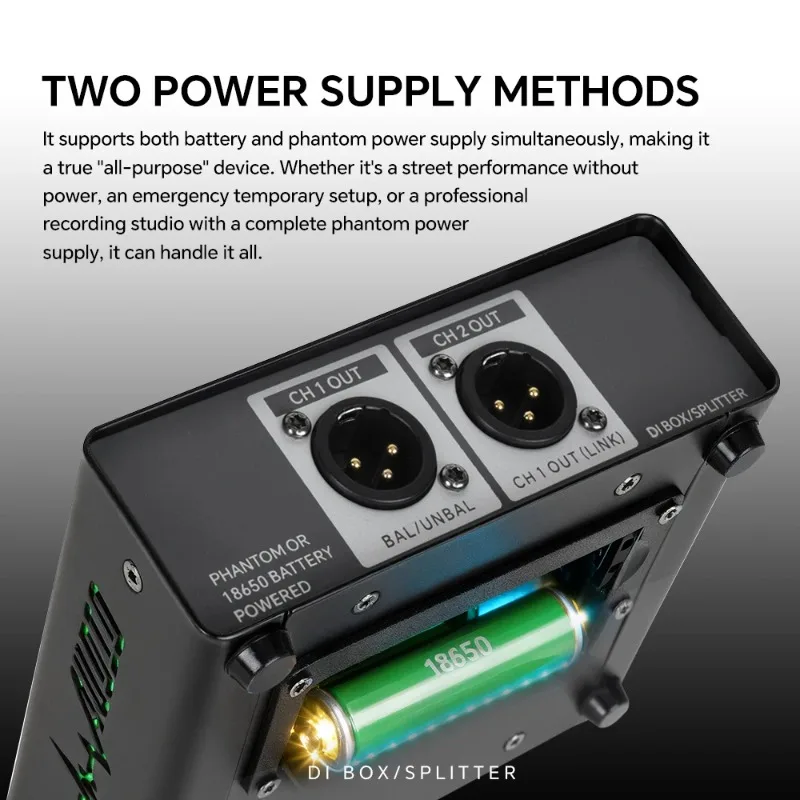

*** Dual Power Supply: Supports both battery and phantom power, making it a truly “all-rounder.” Whether for street performances without power, emergency setups, or professional recording studios with robust phantom power capabilities, it can handle it all.

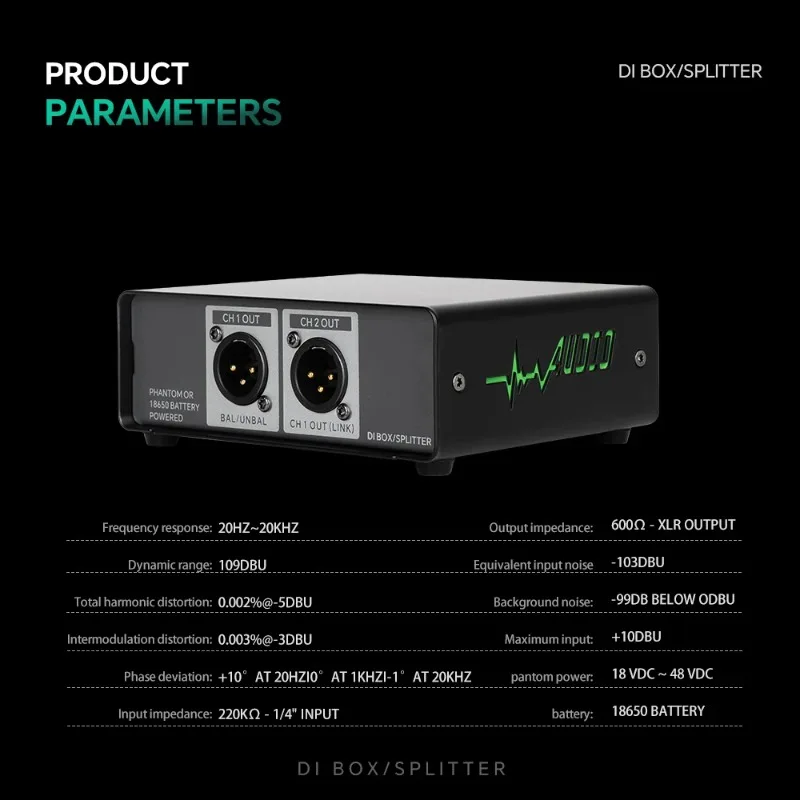

Specification:

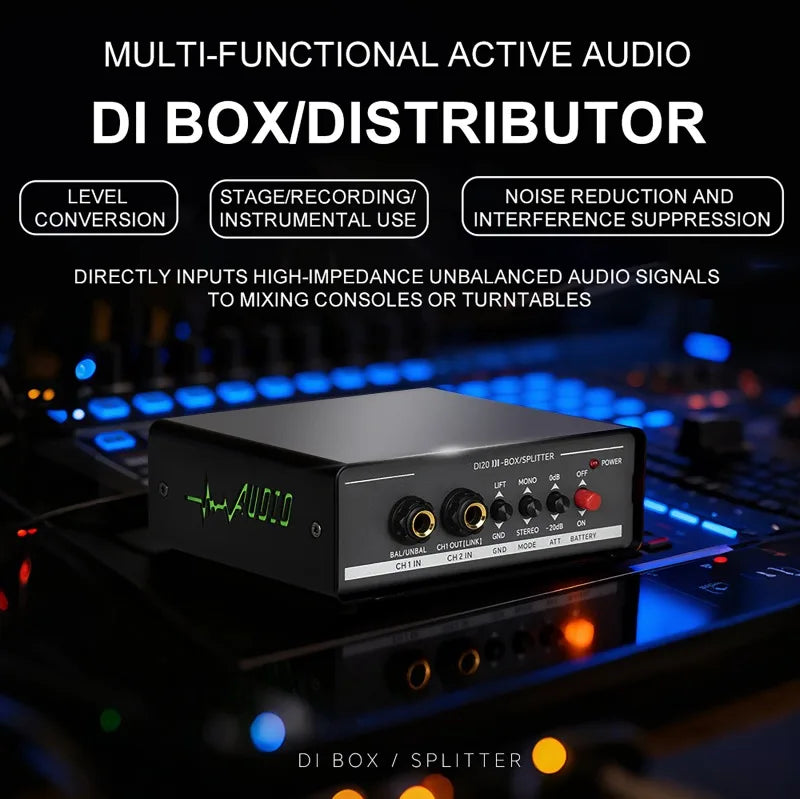

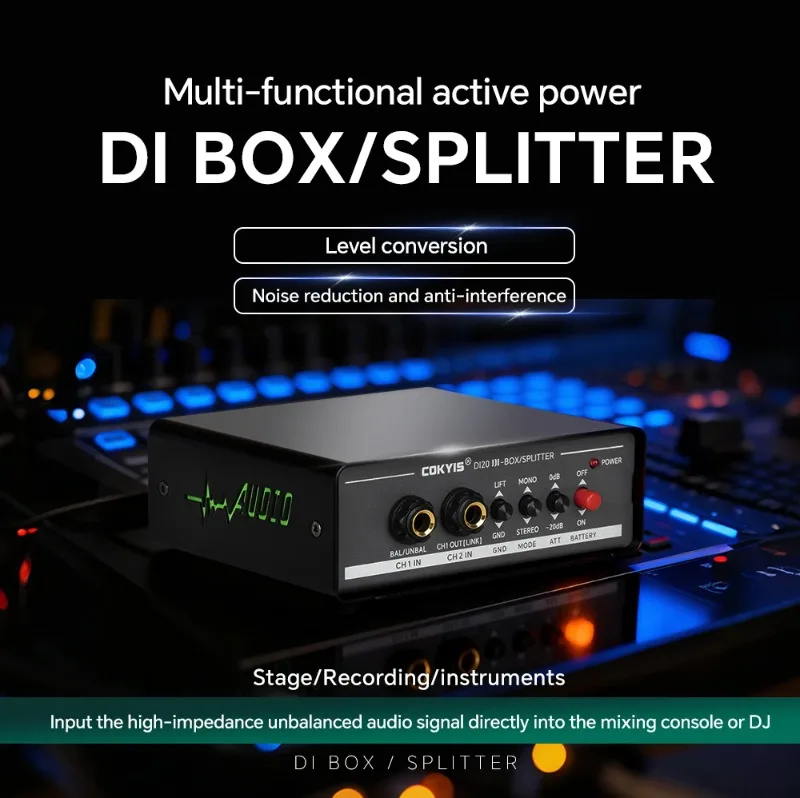

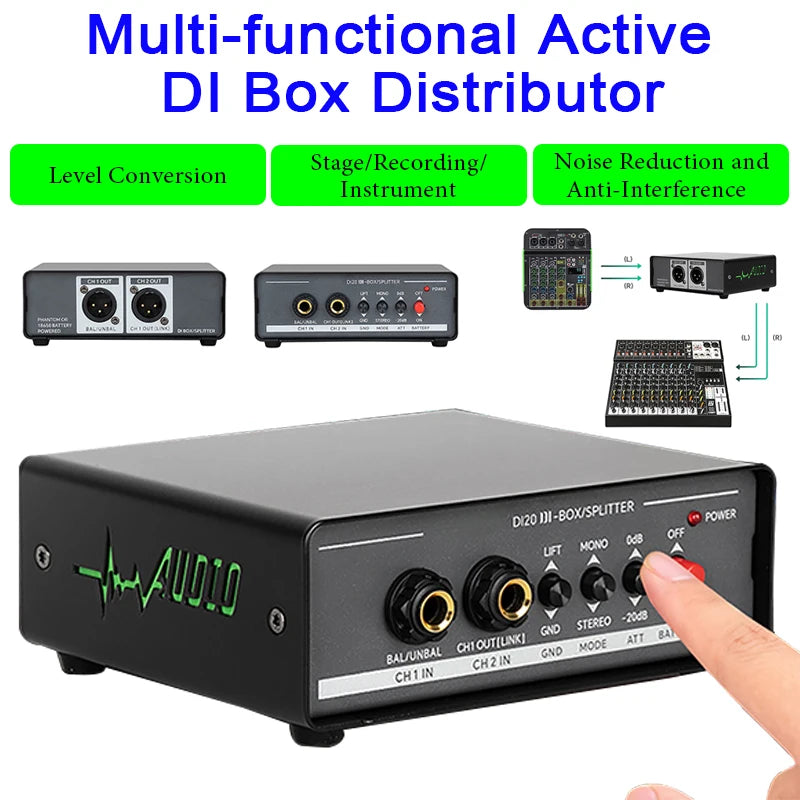

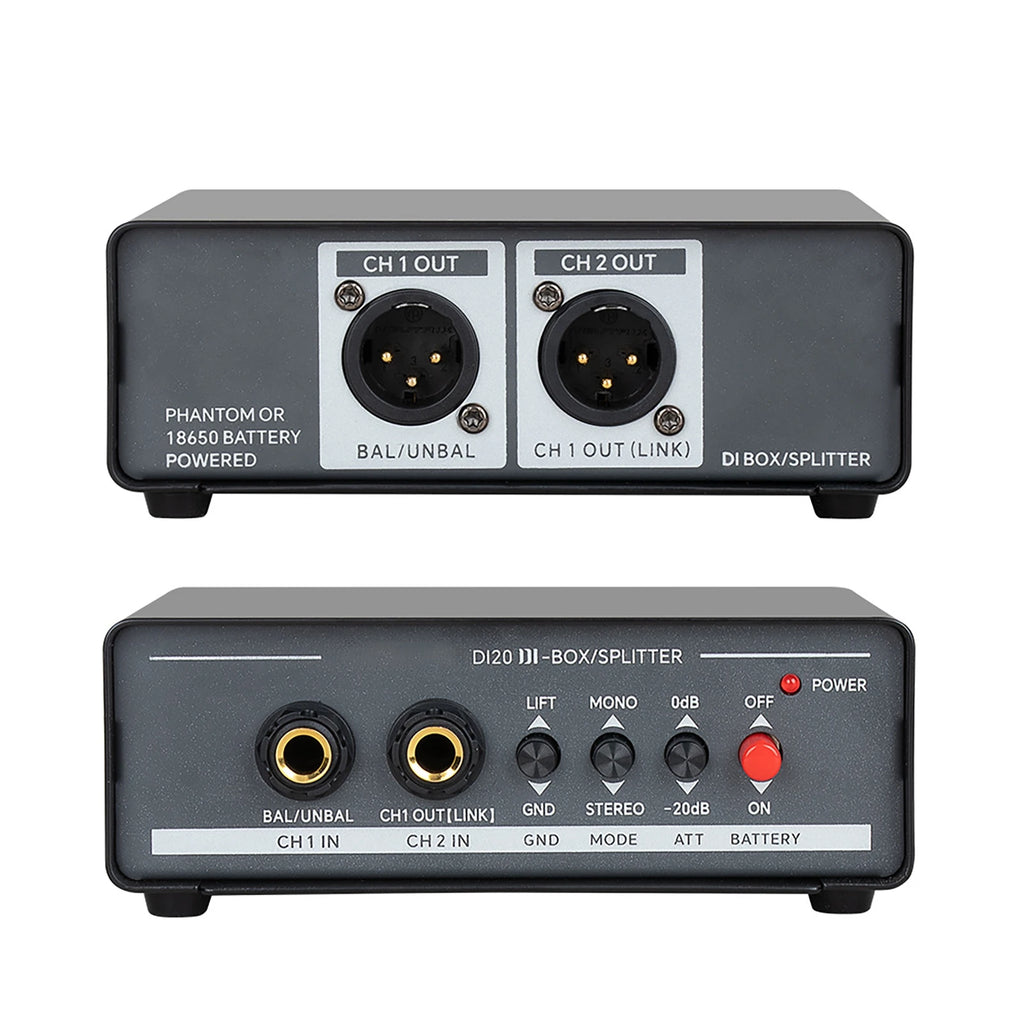

Name: Multi-functional Active DI Box Distributor

Frequency Response: 20Hz~20kHz

Dynamic Range: 109dBU

Total Harmonic Distortion: 0.002%@-5dBU

Intermodulation Distortion: 0.003%@-3dBU

Phase Deviation: +10°AT 20Hz | 0°AT 1kHz | -1°AT 20kHz

Input Impedance: 220kΩ - 1/4" INPUT

Output Impedance: 600Ω - XLR OUTPUT

Equivalent Input Noise: -103dBU

Background Noise: -99dB BELOW ODBU

Maximum Input: +10dBU

Power Capacity: 18VDC～48VDC

Battery: 18650 BATTERY

Dimensions: 167x112x57mm

Color: Black

Packing included:

1 * Multi-functional Active DI Box Distributor
